Sometimes we prefer to specify semantics in terms of actions, not
	  values.  For example, we might prefer that the semantics of FORM
	  perform the action of "writing itself out" to your terminal.  That
	  is different from delivering an integer answer.

	  A compiler might wish to perform the action of "generate machine
	  language code", or "generate phrases in yet another language".	That
	  is, instead of receiving some INTeger value from a <FORM>, we want some
	  specific action to occur.


	  We provide the type BASIC_PROCESS to represent actions.  The type
	  BASIC_PROCESS, and process types in general are documented in more
	  detail in Section and 23.6.

	  You use or ~invoke a BASIC_PROCESS by writing:

		    <*  the_BASIC_PROCESS  *> ;

	  This makes the action represented by the_BASIC_PROCESS happen.

	  You ~create a BASIC_PROCESS by enclosing some program text between
	  // and \\, as in:


	  This BASIC_PROCESS's action is to write a period to your terminal.

	Let us declare a variable of type BASIC_PROCESS:


	Now we can write

		B :=  //  WRITE('.');  \\  ;
		<* B *> ;

	The former statement, the assignment into B, doesn't cause a period
	  to appear on your terminal.	 It merely puts into B the "seed", which
	  when invoked later, will cause a period to appear on the terminal.
	  The latest line invokes the BASIC_PROCESS in B, and hence writes a
	  period to the terminal.

	  Let's make each of FORM, TERM, and ATOM be a BASIC_PROCESS instead of
	an INT.  We erase the old declaration of FORM, TERM, and ATOM, and
	write instead:


	Now each of FORM, TERM, and ATOM has type BASIC_PROCESS, a type which
	is different from the type INT still found in DIGIT and NUMBER.

	Here is the formulas grammar again:

		<ATOM: atomize(n) >  ::=  <NUMBER:n>
		<ATOM: x >	     ::=  (  <FORM:x>  )

		<TERM: x >	     ::=  <ATOM:x>
		<TERM: times(a,b) >  ::=  <TERM:a> * <ATOM:b>

		<FORM: x >	     ::=  <TERM:x>
		<FORM: sum(a,b) >   ::=  <FORM:a> + <TERM:b>

	We've introduced one difference:  The first rule now calls a function,
	  ATOMIZE.	This is necessary because the type of <NUMBER>, and hence
	  the type of the variable N, is INTeger.	 However ATOM demands a
	  BASIC_PROCESS instead.  The appearence of N by itself would be
	  insufficient for the meaning of an <ATOM>.  The function ATOMIZE is
	  there to turn an INT into a BASIC_PROCESS.

	  All we need to do now is to write the three functions:




	  ATOMIZE takes in an INT and yields a BASIC_PROCESS.	 Each of SUM and
	  TIMES maps a pair of BASIC_PROCESSs to a single BASIC_PROCESS.	These
	  datatype constraints are dictated by the types we've declared with the
	parts-of-speech FORM, TERM, ATOM, and NUMBER.

	The definition for ATOMIZE is nearly:




	That is, ATOMIZE delivers a BASIC_PROCESS (//...\\) whose action is to
	write out N.

	We actually write




	We've inserted the text "[N;]" just after the //.  This is necessary
	  so that the WRITE retains access to N.	The //...\\ always denotes
	  a break in time.  The future is inside the //...\\, and the present
	  is outside the //...\\.  The "[N;]" transports N from the present into
	  the future.  N exists in the present (while ATOMIZE is called), but
	  WRITE needs N in the future, when this resulting BASIC_PROCESS might
	  be invoked.

	  ATOMIZE(3) is thus a BASIC_PROCESS whose action is to write 3.
	  ATOMIZE(3) is the semantics of the <ATOM> interpretation for the


	  Thus, the invocation of the <ATOM>'s semantics will cause a 3 to appear
	on the terminal.  Remember that a call to ATOMIZE merely delivers
	the //...\\.  The "..." in there is not executed when ATOMIZE is
	called.  ATOMIZE's result, the BASIC_PROCESS, can be invoked later.

	  Here is the definition for TIMES:


					  WRITE('(');	" write a '(' "
					  <*A*>;		" make A write itself "
					  WRITE('*');	" the '*' "
					  <*B*>;		" make B write itself "
					  WRITE(')');	" write the final ')' "

	  The result of TIMES, the //...\\, retains access to A and B (the
	  "[A;B;]"), so that when it is invoked in the future, it can invoke
	  A and B so as to have them show themselves on the terminal.
	  TIME's resulting BASIC_PROCESS, when actually invoked, prints out

			(  ~what_A_is  *  ~what_B_is  )

	(Other formulas appear in the places of ~what_A_is and ~what_B_is).
	Thus, the string 2*3 has semantics which when invoked, causes the
	following to appear on the terminal:


	(When TIMES was called, A had ATOMIZE(2) and B had ATOMIZE(3).
	Hence the "<*A*>;" in TIMES causes the 2 to appear and "<*B*>;"
	causes the 3 to appear.  The parentheses and the "*" are printed
	via the WRITE statements in the process delivered by TIMES).

	SUM is the same, except that it writes a "+" instead of "*":



	The string 1+2*3 has semantics which when invoked, causes the
	following to appear on the terminal:


	At the time SUM was called, A had the semantics of "1" and B had the
	semantics of "2*3".  The "<*B*>;" in SUM causes the "(2*3)" to be

	We've written SUM and TIMES so as to always produce parentheses
	  around the "+" ("*") and its operands.	The latest line exposes
	  explicitly that we group multiplications before additions.


	  1)	    How will each of the following formulas appear on the terminal
		    when their semantics are invoked?

			 a)	5
			 b)	((5))
			 c)	2*(3+(4))
			 d)	2*3+4*5
			 e)	1+(2+(3+(4+5)))

	  2)	    Let's rewrite the definition of SUM as follows:


		What will appear on the terminal when we invoke the semantics
		each of the following?  It will be helpful to write down the
		derivation for each:

		   a)	1+2
		   b)	(1+2)+3
		   c)	1+2+3
		   d)	1+2*3+4
		   e)	(1+2)*(3+4)

	3)	Rewrite ATOMIZE so that a space character appears before the

	4)	Rewrite SUM and TIMES so as to produce prefix Polish notation,
		where the operator (e.g., "+") appear not between its
		operands, but before them.  That is, we want:

			1+2		to appear as	+ 1 2
			2*3		to appear as	* 2 3
			1+2*3		to appear as	+ 1 * 2 3
			2*3+4*5		to appear as	+ * 2 3 * 4 5

		This polish notation needs no parentheses.

	5)	Why was it necessary to introduce the function ATOMIZE when
		we chose BASIC_PROCESS as the type for FORM, TERM, and ATOM?

	6)	Consider the formulas grammar.

		Why is it necessarily the case that the type of the result
		of sum(x,y) is the same type as the data in x?  Is this
		true no matter what type we give for the semantics of FORM and
		TERM?  Is it conceivable that the type of y might be different
		from the type of sum(x,y)?

	7)	Let's declare parts-of-speech as follows:


		    We choose to leave INTegers behind and adopt REALs (floating
		    numbers, or numbers with fractions) so that we can introduce
		    the divide operator "/", as in the rule:

				<TERM: a/b >   ::=   <TERM:a>	 /  <ATOM:b>

		    We want the resulting a/b to be accurately represented.	 Assume
		    the following:

			 *	Each of "+", "*", and "/" in our semantic language work
				not only for INTegers, but also on REALs, as is the
				case in many programming languages.

			 *	There is the operator FLOAT which turns an INT into a
				REAL, i.e.,

					  FLOAT( int )	->	  real

			a)	Write the whole formulas grammar, with "/", so as to
				be compatable with our new declarations for the parts-
				of-speech FORM, TERM, and ATOM.  (NUMBERs are still

			b)	Why have we introduced "/" by the rule

					  <TERM: a/b >	::=	  <TERM:a> / <ATOM:b>

				instead of the rule

					  <FORM: a/b >	::=	  <FORM:a> / <TERM:b>

				With the former rule, what is the value of 1+2/3?
				With the latter rule, what is the value of 1+2/3?

	  8)	    Let's introduce a new part-of-speech:


		We introduce the rule:

			<FLOATING_NUMBER: ... >   ::=  <NUMBER:x> . <NUMBER:y>

		The "..." is

			DO   continually divide y by 10, until it is less than

			GIVE  x + y

		As a <FLOATING_NUMBER>, what are the values of

			a)	1.0
			b)	1.7
			c)	10.7
			d)	1.07

		Does this method work?  If not, in what cases will it not
More About Delayed Semantics

	The type BASIC_PROCESS has two very useful properties:

	    1)	It takes almost no time to create a BASIC_PROCESS.

			(The //...\\ is very cheep to create, even when the
			inside (...) is an expensive computation.  That
			expensive computation will happen later, upon
			invocation, but not now, at the time of creation).

	    2)	Even if the action represented by the BASIC_PROCESS has side-
		effects, the action of creating of the BASIC_PROCESS has no

			(The side-effects will occur later, when the
			BASIC_PROCESS is invoked).

	The generation of a BASIC_PROCESS is very fast and is free of side-
	effects.  This makes BASIC_PROCESS the ideal type for semantics, when
	we consider that a parser may indeed try many false rewrites, rewrites
	which won't be part of any overall meaning for the given string.

False Rewrites During Parsing

	  For example, a parser might at some time consider the following
	  rewrite sequence:

		    1		   +		    2		    *		    3
		 <DIGIT:1>			 <DIGIT:2>			 <DIGIT:3>
		 <NUMBER:1>			 <NUMBER:1>			 <NUMBER:1>
		 <ATOM: atomize(1)>	 <ATOM: atomize(2)>	 <ATOM: atomize(3)>
		 <TERM: atomize(1)>	 <TERM: atomize(2)>	 <TERM: atomize(3)>
		 <FORM: atomize(1)>
		 -- <FORM: sum(atomize(1),atomize(2))> --

	  This final <FORM> spanning the 1+2 cannot be used in any successful
	  derivation for 1+2*3.	 If sum were an expensive computation, the time
	  taken to compute sum(1,2) would be a major loss.  In addition, if sum
	  involved side-effects, the side-effects would have to be undone at
	  some time.

	  We make sum both inexpensive and free of side-effects by
	  having sum return a BASIC_PROCESS, whose later execution will perform
	  the expensive computation and side-effects.  In this
	  example, since sum(1,2) won't be part of any successful derivation
	for 1+2*3, the program given by sum(1,2) will never be executed!


	  The BASIC_PROCESS is represented by the address of a program along
	  with its square-bracket context, the values held in the variables
	  appearing within the square-brackets.  For example, the BASIC_PROCESS

				WRITE(')');	    \\

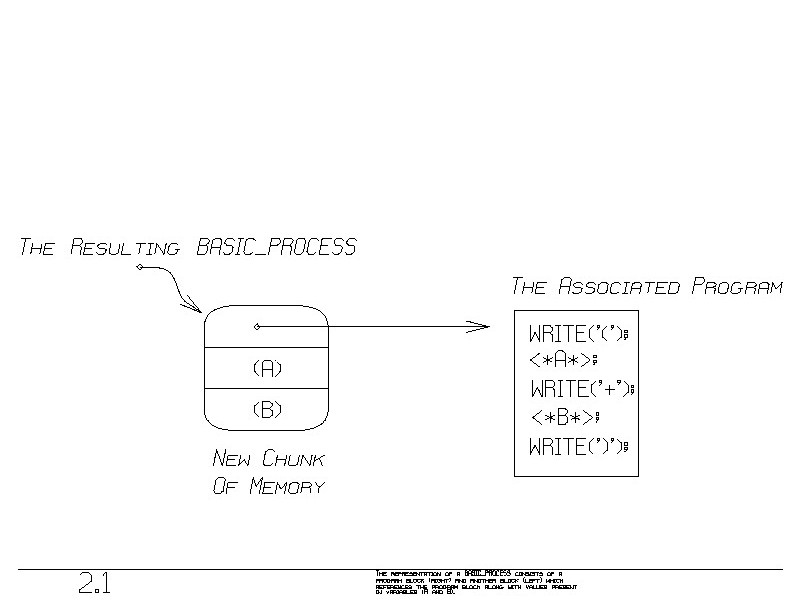

	  is represented as shown in figure 2.1.

          Given the values presently in
	  the variables A and B, the creation of the BASIC_PROCESS is quick; it
	  merely allocates a chunk of memory and stuffs the values from A and B
	  into it.	We also stuff in the address of the associated program.
	  (That address is represented in the figure by a pointer).

	  In these figures we use the notation


	  to mean a copy of what is in the variable A.	In figure 2.1, we can see
	  that the present values of A and B are stuffed into the new chunk of
	  memory.  Upon future invocations (<*...*>), those values will be put
	  back into A and B for the duration of the execution of the program
	  appearing on the right.  (Between the time of creation and the time
	  of invocation, the variables A and B may lose their original values,
	  as A and B may be used for other purposes).

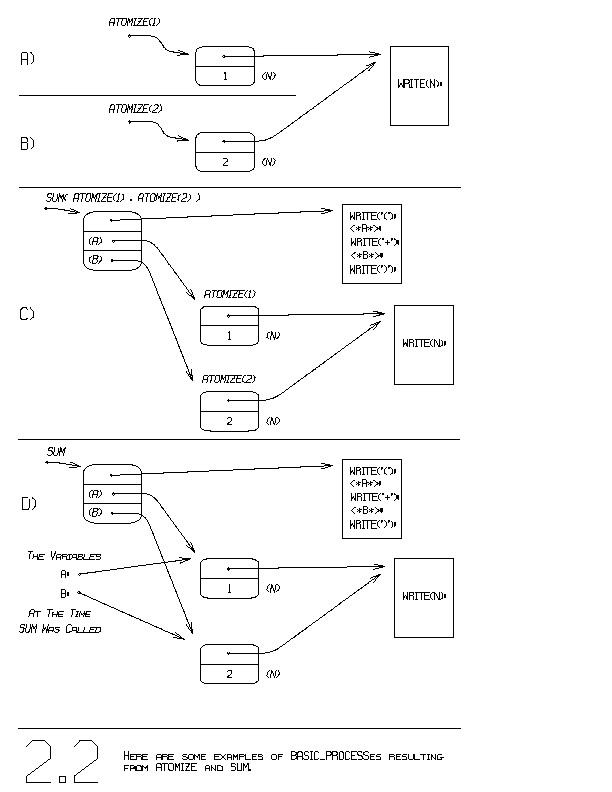

	  The results of ATOMIZE(1) and ATOMIZE(2) are shown in figure 2.2 parts
	  (a) and (b).

          Each has its own new chunk of memory.	 Notice how each
	  holds a different value for N.  Notice also that both results
	  reference the same occurence of the program, the "..." in //...\\,
	  the "WRITE(N);".

	  Figure 2.2(c) shows the result of
	  sum.  That result references what the variables A and B reference, as
	  shown in figure 2.2(d).  The call to SUM creates only one new memory
	  chunk, the one appearing in the upper left of figure 2.2(d).  The last
	  two words in that memory chunk contain exactly what A and B contained
	  at the time SUM was called.

	  This simple operation of allocating a new memory chunk and putting
	  the values of A and B into it gives rise to complicated looking
	  diagrams.	 Because A and B each contains a pointer (the address of
	  another memory chunk), the newly allocated memory chunk winds up
	  holding those pointers.  Thus, we wind up with memory chunks pointing
	  to other memory chunks, which themselves may point to others, etc.

	  Although these diagrams, intertwining data and programs, seem daunting,
	  the computer deals with them very easily and efficiently.	 Each block
	  is built easily.  The composition of such blocks only ~looks
	  complicated.  Fortunately, we don't have to think about that.  These
	figures are included so as to satisfy the reader who wants to
	understand how these concepts are actually implemented in computer
	memory.  More about chunks of memory and pointers appears in Part 3.

	Let's consider what happens upon the invocation of the result from
	  SUM (the upper left memory chunk in figure 2.2(d)).	 Simply by passing
	  the address of the SUM memory chunk into the invocation operator
	  (<*...*>), the invocation operator can do its thing.  It calls
	  the associated program (whose address is in the first word), but first
	  puts back into A and B the contents of the memory chunk's second and
	third bins.

	That program execution will first write the "(", and
	then invoke A.  It is this second operation that has required the
	preservation of A's original value.	 Once again, the "<*A*>;" merely
	  passes to the invocation operator the pointer residing in A.  The
	  invocation operator does the same old thing:	It restores the value 1
	  into the variable N, and executes the associated program, the
	  "WRITE(N);".  Upon completion of "WRITE(N);", the "<*A*>;" in SUM
	  is complete.  SUM's program then continues by writing the "+", and
	then invoking B (the "<*B*>;").  The invocation operator, now given
	the address in B, ultimately writes out the 2.

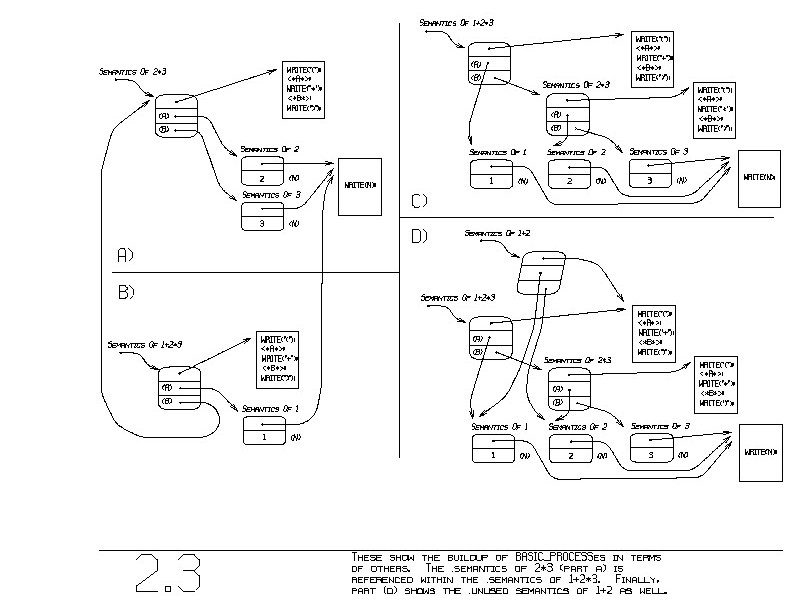

	Figure 2.3(a) shows the semantics of 2*3.
        Figure 2.3(b) shows the
	semantics for 1+2*3.  Notice how it references the semantics of 2*3
	(the B parameter).  The A parameter holds the semantics of "1".
	Figure 2.3(c) shows an equivalent way of drawing the semantics of
	1+2*3.  Please study this carefully.  Recall that when SUM was called,
	A had the semantics of 1 and B had the semantics of 2*3.

	We noted earlier that many false rewrites, rewrites that
	lead nowhere, may be performed during parsing.  Figure 2.3(d) shows the
	semantics of 1+2*3 along with the semantics for the false rewrite of
	1+2.  Although we took the time to create the semantics of 1+2, it is
	never referenced from within the semantics of the overall 1+2*3.
	If you follow the arrows from 1+2*3, you will never arrive at the
	semantics of 1+2.  (You can reach each of 1 and 2, but not 1+2).

	Not only will the semantics of 1+2
	never be executed, the memory chunk used to represent it will soon
	be reclaimed by a process called garbage collection (Part 8).  Garbage
	collection recycles memory chunks that are inaccessible.  When we
	ultimately hold on to only the semantics of 1+2*3, the 1+2 semantics
	will be referenced by no one.  It will be entirely safe to reuse those
	memory chunks for other (future) uses.  Thus, the semantics built up
	for false rewrites will never be executed and will ultimately consume
	no memory.

	Thus, we keep false rewrites from being expensive by delaying the
	bulk of execution of any semantics until the parsing is done.  During
	the parsing, only (cheap) BASIC_PROCESS's are created.  Finally, when
	  the parsing is done, we execute only the semantics accessible from the
	  overall <FORM> spanning the input 1+2*3.  The semantics of all false
	  rewrites simply do not exist within the overal <FORM>'s semantics.

The Transfer From Syntax To Action Semantics

	So far, none of our rules in the formula grammar (with BASIC_PROCESS
	semantics) invokes any BASIC_PROCESS immediately.  All invocations
	(<*...*>) appear inside of //...\\.  That is, all invocations occur in
	the future.  There is no invocation outside any //...\\ to get things
	started now in the present.

	We now introduce a rule which will cause the semantics to be executed:

		SHOW  <FORM:f>  .	  ->	  <*f*>;

	The righthand side of the "->" is a program.  That program is executed
	as soon as the "SHOW <FORM> ." is seen.  That immediate invocation of
	f causes the <FORM> to show itself now on your terminal.

Top-Down Context

	BASIC_PROCESSs allows us to control the executions of our constituents
	(e.g., the ~a and ~b in SUM).  We were able to write an open
	parenthesis "(" prior to causing ~a to write itself.

	We have the chance to "set things up" prior to any invocation.  What
	ever we set up prior to invocation is called ~top-down ~context for
	that invocation.  Top-down context is values put into certain variables
	prior to an invocation.  Those variables are then read during the

	For example, we could change part of the formula grammar so as to
	print numbers in a base different from base ten.  We declare a global
	variable to hold the new context:

		VAR	WHICH_BASE = INT ;	" (a variable of type INTeger)"

	We will stick a value into WHICH_BASE prior to invoking any

	First, let's make ATOMIZE respond to WHICH_BASE, with this
	  new definition for ATOMIZE:



	  This presumes there is a function that will write an INT in any
	  desired base, i.e.,

		    WRITE_IN_BASE( the_number , the_base )

	  The variable WHICH_BASE is a global variable, and hence doesn't need
	to appear in the square-brackets ("[]") like the variable N (see
	Section or 23.6).  That is, during the call to ATOMIZE, we
	don't care at all about WHICH_BASE's present value.  We use WHICH_BASE
	only as a variable in the ~future, ~during ~invocations.

	So far, we haven't put a value into WHICH_BASE.	 Let's set it now, to
	the default base ten:

		WHICH_BASE :=  10 ;

	Now, SHOW <FORM> will continue to work as before.

	Let's add the rule:

		    SHOW  <FORM:f>  IN	BASE	<NUMBER:n>	.	->	 ...

	  which does contain specification for a base.	The righthand ... is
	  a program:


					  ~DO	    <*F*>;


	  This rule invokes F after putting the correct base into WHICH_BASE.

	  We use the ~HOLDING construct because we don't want to have a permanent
	effect on the global variable WHICH_BASE.  We want merely a temporary
	effect, long enough to cover the invocation of F.  After the ENDHOLD,
	WHICH_BASE goes back to its original value, e.g., ten.  (Sections or 22.1.10 or 22.2.2 tell more).

	(This use of HOLDING is equivalent to:

		OLD :=  WHICH_BASE;	"Save the original value"


		WHICH_BASE:= OLD;	"Restore original value"	)

Another Example Of Top-Down Context

	The following example probably has no application, but it will further
	illustrate top-down context.  More realistic examples will follow in
	Section 3.3.

	For now, let's introduce a new, odd meaning for parentheses.  Let's
	suppose that parentheses not only imply a grouping, but that they also
	change all numbers appearing between the parentheses.  We would like
	each pair of enclosing parentheses to cause all numbers within them
	to be multiplied by a factor of ten.  That is, we would like the
	following printouts upon invoking semantics:

		5		appears as	5
		(5)		appears as	50
		((5))		appears as	500
		1+(2*(3))	appears as	(1+(20*300))

	We change two rules:

		<NUMBER:n>		->	<ATOM: atomize(n) >

		(  <FORM:f>  )		->	<ATOM: f >

	We change the first rule so as to write numbers multiplied by some
	power of 10, a value that we ~presume is in the new variable

		<NUMBER:n>	->	<ATOM:	//[n;]
						    WRITE( n * THE_FACTOR );
						\\			     >

	(We've abandoned the ATOMIZE function, but we've replaced the call
	to ATOMIZE directly by what we'd otherwise put into a modified
	  rendition of ATOMIZE).  The semantics of the <ATOM> is a BASIC_PROCESS
	  whose action is to write out N times THE_FACTOR.

	  We must declare the top-down context variable THE_FACTOR.	 We declare
	  it now:


	  Prior to invoking any <ATOM>, we must set THE_FACTOR.

	  The updated parentheses rule sets THE_FACTOR:

		    (	 <FORM:f>  )	 ->

					  <ATOM: //[f;]

							 DO	<*f*>;

						   \\			  >

	  This //...\\ in the <ATOM> is a BASIC_PROCESS (as is demanded by the
	  part-of-speech ATOM).	 Its action is to invoke F (the <FORM> between
	  the parentheses) under the illusion that THE_FACTOR is ten times

	  Once again, we use the HOLDING construct to
	  assign the new value into THE_FACTOR:  We want this effect to exist
	  only during the invocation <*F*>.	 THE_FACTOR provides the
	  communication from this parentheses rule down to the semantics of
	  the <ATOM>, which prints numbers.

	  With this rule, we haven't taken the time to make up a new function,


	We've written the body of the function instead of a call to the

	  Before we start any of this, let's set THE_FACTOR's default value,
	  (the value that will reign outside any parentheses):

		    THE_FACTOR:= 1 ;


	  1)	    What value will THE_FACTOR contain when we actually print out
		    the 5 in

				(2+5)*3 ?

		    What about in

				1+2*(3+(4+5))   ?

	  2)	    How will  1+2*(3+(4+5))  appear upon invocation of semantics?

	  3)	    Suppose we didn't use the HOLDING construct in the parentheses
		rule.  Suppose we wrote instead:

			(  <FORM:f>  )	     ->

					<ATOM:  //[f;]
						    THE_FACTOR:= THE_FACTOR*10;
						\\		>

		How will (1)+(2) appear?  How about 1+(2)+3?

		What if we invoke the semantics of 1+(2+3) and then invoke
		the semantics of 1?  What will the lone 1 appear as?  What if
		we then invoke the semantics of 2+(3)?  What will we see?

	4)	Modify the semantics of the <ATOM> in the previous excercise
		so that without the HOLDING construct, THE_FACTOR will appear
		on exit to contain the same value as it had upon entrance.

	5)	Rewrite the parentheses rule and the "+" rule (SUM) so that
		within parentheses, "+" prints out its operands swapped, i.e.,

			1+2		appears as	(1+2)
			1+(2+3)		appears as	(1+(3+2))
			1+((2+3))	appears as	(1+(3+2))

			1+(2+(3+4))	appears as	(1+((4+3)+2))

		That is, the operand order is reversed for any expression
		enclosed in one or more parentheses pairs.  You will need to
		declare a new global as follows:


		This is a Boolean variable.  It can be assigned the values
		TRUE and FALSE, and it can be used in the IF-THEN-ELSE
		construct, e.g.,

					   ELSE  ...   FI

		(The FI is part of the IF-THEN-ELSE notation, as shown in
		Section or 22.2.3).

		First ask yourself which two rules need to be modified.

	6)	Instead of having parentheses multiply by ten everything
		inside them, have them instead subtract one.  We want

			1+(3+4)		to appear as	(1+(2+3))
			1+(3+(4))	to appear as	(1+(2+2))

		Modify two rules to make this so.  You
		can use the variable THE_FACTOR, although a better variable
		name would be THE_DEBIT.

	7)	Consider now only the WHICH_BASE top-down context variable.
		Consider the new rule:

			<ATOM:a> IN BASE <NUMBER:n>	 ->

				<ATOM:  //[a;n;]

					    HOLDING  WHICH_BASE:= n;

					    DO	  <*a*>;


					\\		>

		This rule allows an <ATOM> to be augmented with a new base
		specification for print out.  What will the following appear

			a)	5  IN BASE  2
			b)	5+6 IN BASE 2
			c)	(5+6) IN BASE 2
			d)	5+(6 IN BASE 2)
			e)	5+6 IN BASE 2 * 3 IN BASE 3
			f)	5 IN BASE 2 IN BASE 3
			g)	5+6 IN BASE 2 IN BASE 3

		It will be helpful to write down the derivation for each of
		these expressions.

		Suppose we change the new rule so that <FORM> appears instead
		of <ATOM>:

			<FORM:a> IN BASE <NUMBER:n>     ->    <FORM: ... >

		(The "..." is unchanged).  Which of the above formulas can
		still be viewed as a <FORM>?  How do those legal <FORM>s
		appear when their semantics are invoked?

	More practical examples of top-down context will appear in the next
