See History of Kelty Spectra Backpacks for lots of information and pictures about the Kelty spectra packs. The Kelty spectra packs are likely the most durable packs ever made. All of the stitching is done with Kevlar thread, which is far stronger and abrasion resistant than nylon thread. (On my McHale spectra pack some of the stitching is in spectra, but most is in nylon.) In addition, the shoulder straps and waist strap is made with spectra fabric. Most spectra packs don't have spectra shoulder and waist straps. Most of the things sewn to the pack, such as the daisy chains and mounting points for straps are made of spectra, which I have never seen in any other line of packs. This pack will survive a tremendous amount of abuse compared to any other pack. I have three Kelty Cloud 4000 packs. Each of them are slightly different from the others. One has blue and gray trim, the other has all blue trim. This pack is a 4000Reg, and has no side pockets or rear shovel pocket. All of them have a removable, adjustable hip belt. The hip belt is secured to the pack with Velcro and can be moved up or down a total of 2 inches, to allow for different back lengths. |

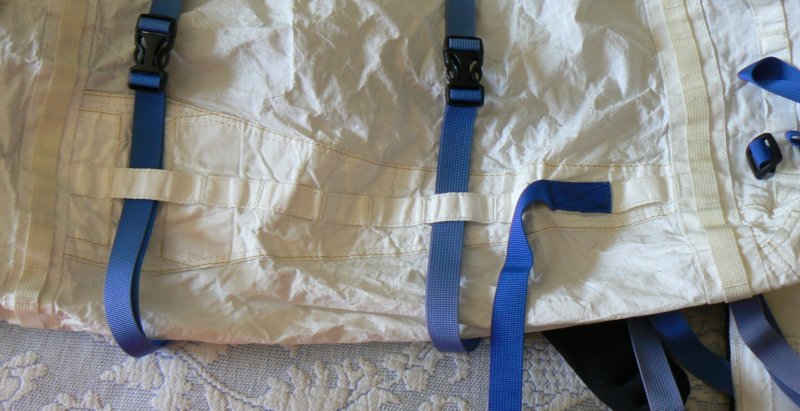

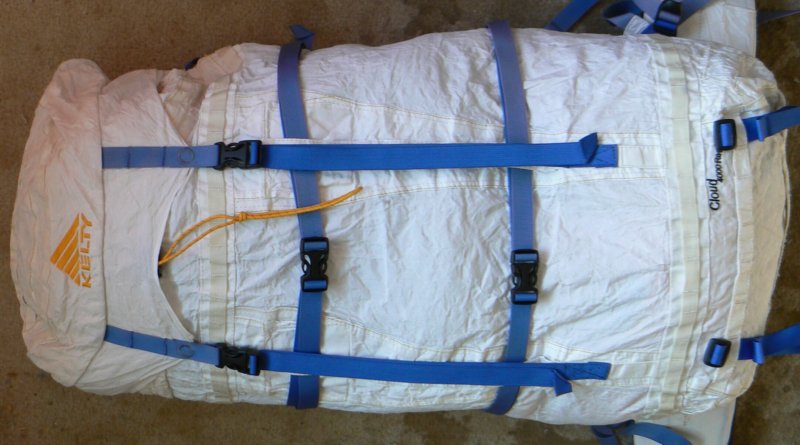

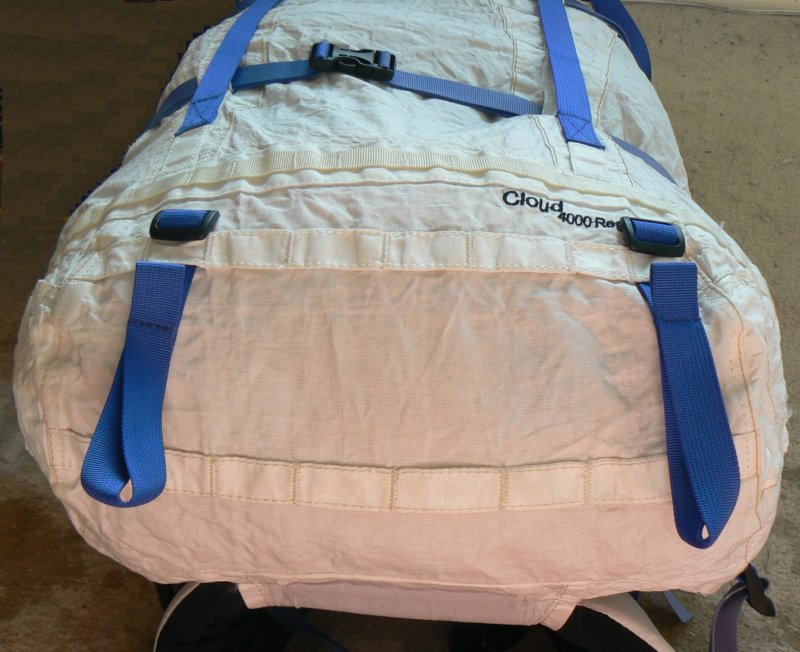

Here are exterior pictures of the pack. The trim is blue for this pack. The third picture shows a close up of the daisy chains that are on the back of the pack. There is a reinforcement layer of spectra under the daisy chain. The daisy chain, like all the daisy chains on the pack are made of spectra fabric, sewn with Kevlar thread. Most packs have daisy chains on the back of the pack, like there. This pack also features a pair of daisy chains on the bottom of the pack, a horizontal pair going around the pack, and a pair on the lid. The fourth picture shows the bottom area of the pack. The two ice axe loops are removable. Also visible are two daisy chains on the bottom of the pack.

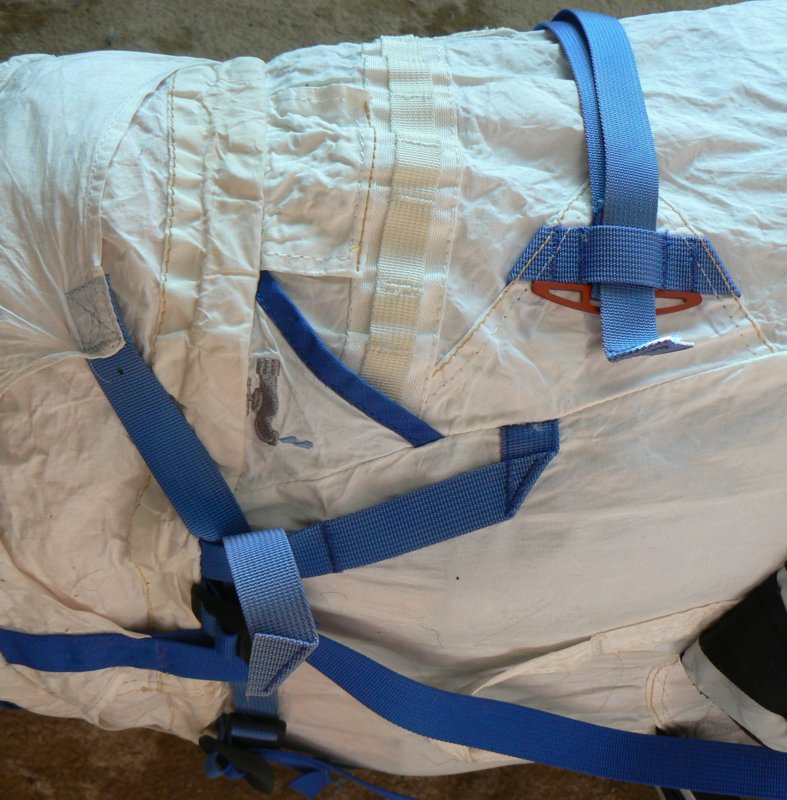

This pack has two compression strap which go from one side of the pack to the other side of the pack. These compression straps end in a loop sewn to a red curved piece of aluminum, as can be seen in the picture above. This is how the new 5250 pack works. Also visible are a daisy chain above the compression strap. This is for attaching stuff to the outside of the pack. There is a similar daisy chain below the lower compression strap. Also visible is one of the two hydration ports, which allow a hydration tube to go from inside the pack, to the outside of the pack.

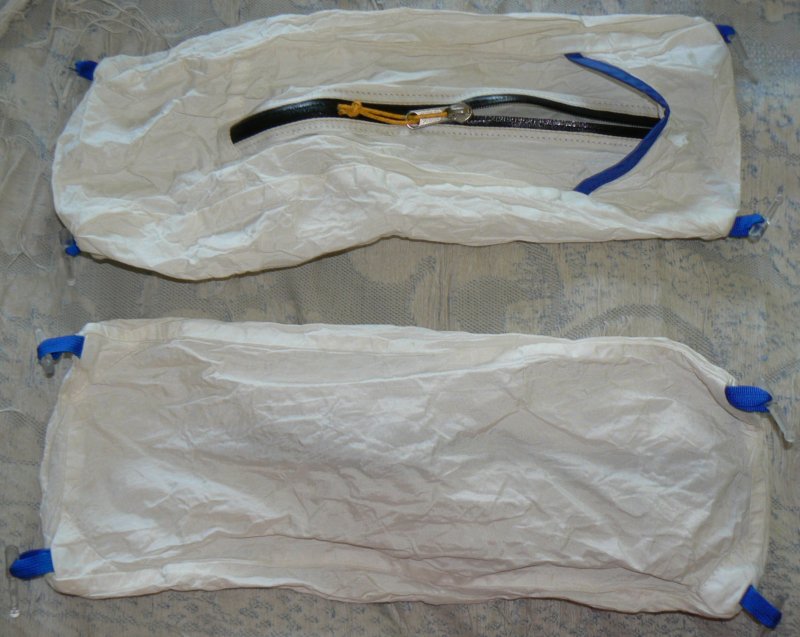

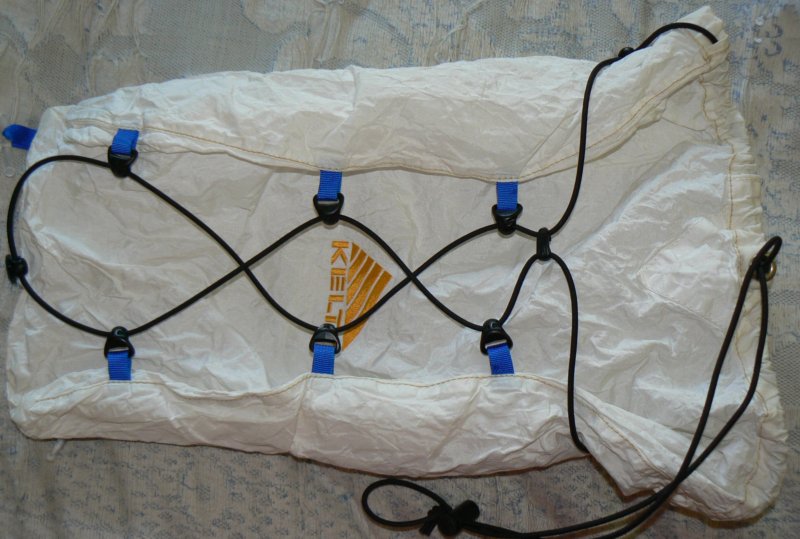

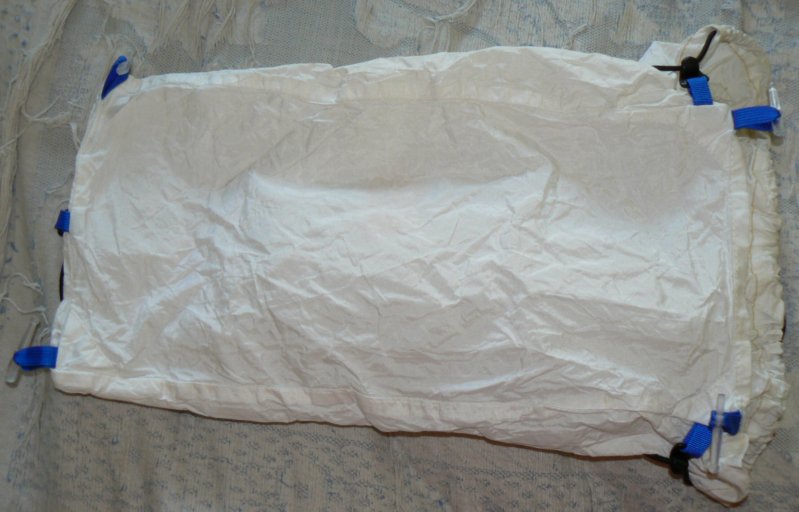

Here are pictures of the shovel pocket. It is big enough for a decent sized snow shovel blade (roughly 12 inches by 12 inches. You could also put other things in it. It has an elastic cord that goes on the back to secure wet clothing or other stuff outside the pack. It has a drawstring on top to secure interior items. The next picture is the side pockets. They have a urethane coated zipper. The area above the top of the zipper shields it from the rain, but the zipper does not seal the pocket. It is a slightly odd design.

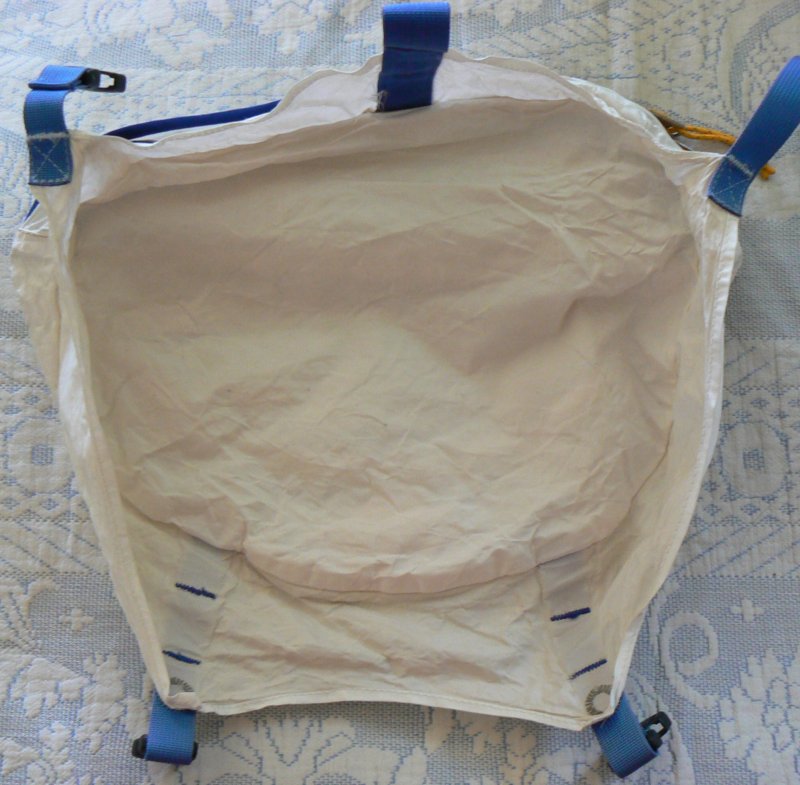

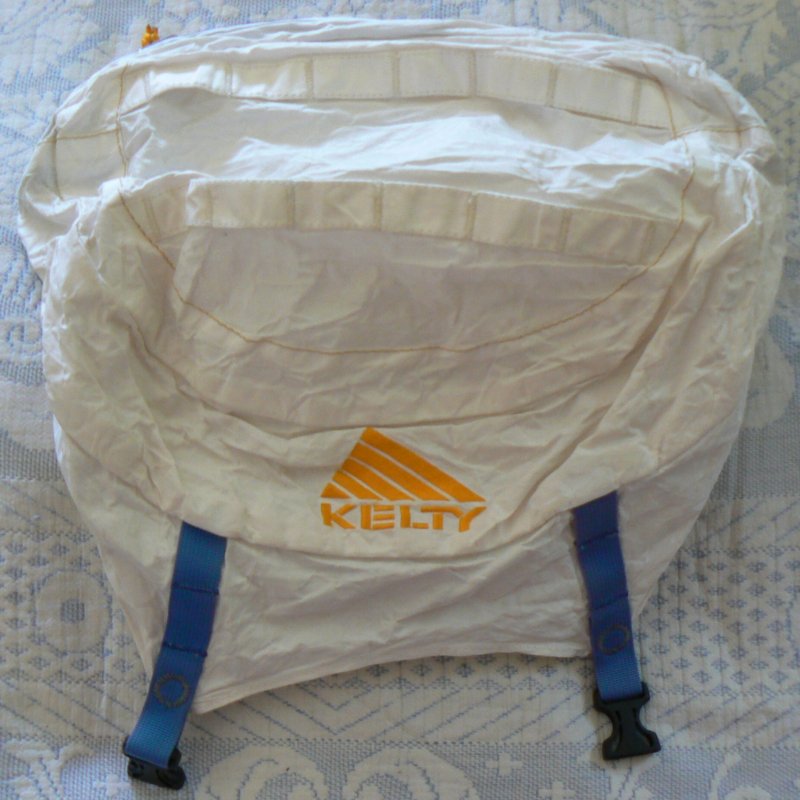

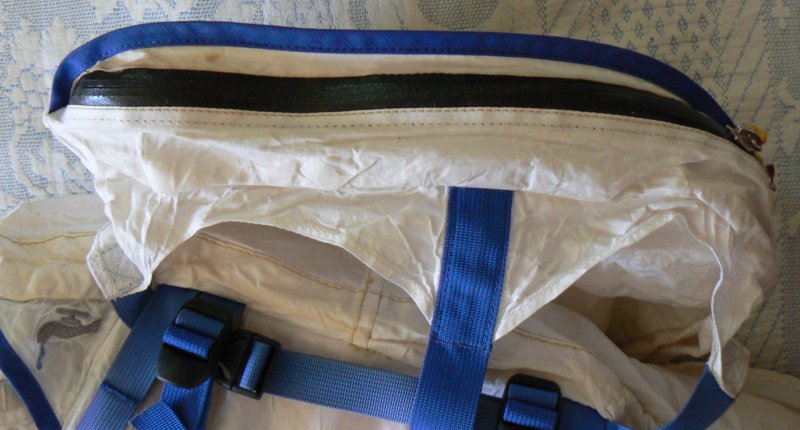

The first picture is of the top of the lid. You can see two spectra daisy chains going from side to side. The zipper to access the compartment is at the bottom. The two buckles in the front secure the lid to the main bag. The buckle, loop, and strap with matching buckle attach to the rear of the pack via sewn loops in the blue webbing, and the buckle clips from one side to the other side. All the cloud packs attach the top compartment this way. It is a simple, light, robust mechanism, however there is limited room to adjust the lid upward for large loads. I think there in enough adjustability for the height of the pack skirt extension. (The skirt is made of spectra and is about 6 inches long. The next picture shows the bottom of the lid. The last picture shows the lid zipper. It has urethane coated teeth which makes the zipper more waterproof.
There is a big top section of the pack which has a single compartment, unlike most top sections of packs I am familiar with. I think it would be an improvement if it were divided. It comes off, but doesn't make a hip pack like the current 5250 pack top. There is no internal place for a hydration pack unlike the current 5250 pack.

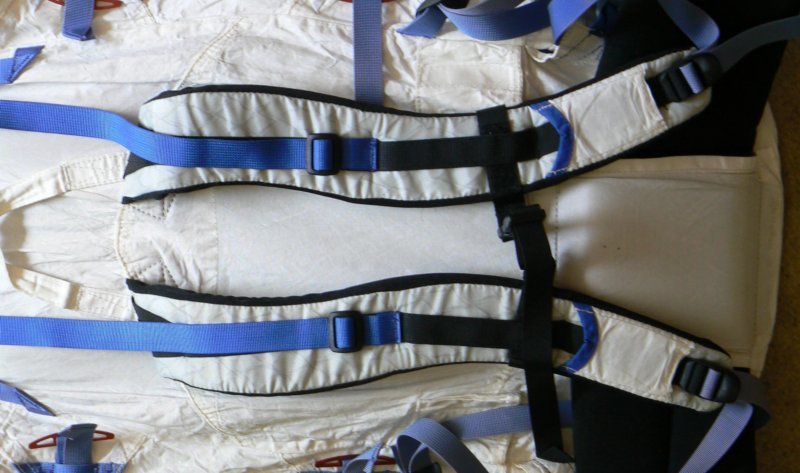

There are two straps that go from the upper pack to the shoulder straps for helping move the top of the pack closer to your body. Their attachment point on the shoulder straps can be adjusted by the slider. There is a sternum strap. The haul loop is made out of spectra fabric.

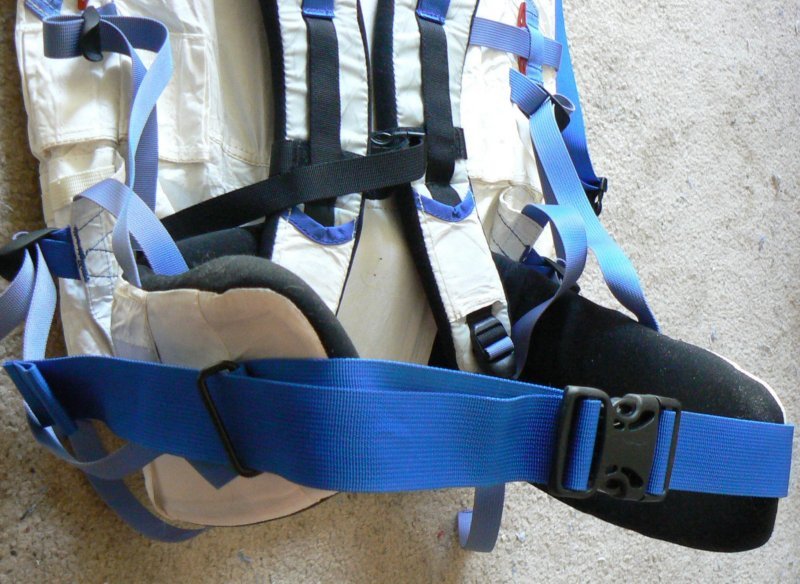

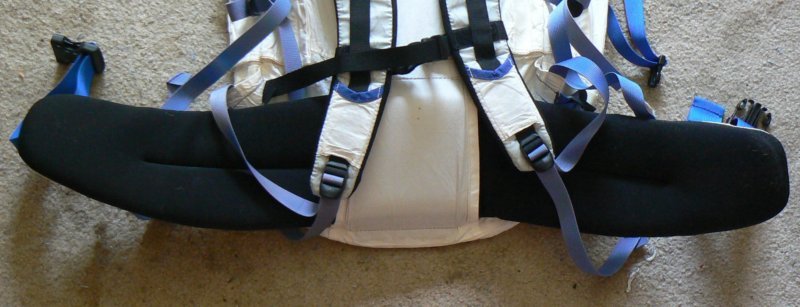

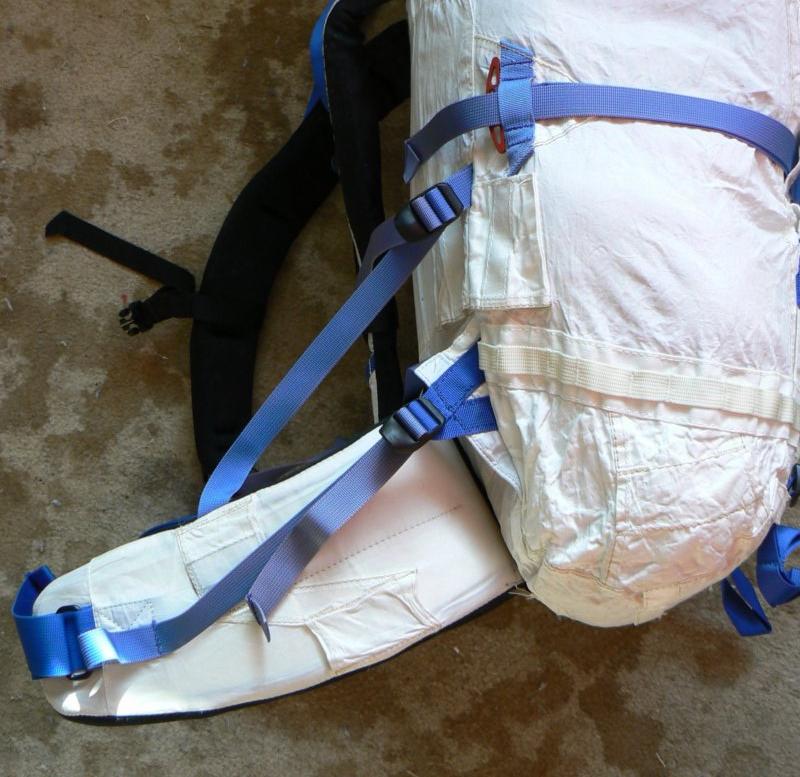

The pack has two small pockets with Velcro inside, on either side near the waist belt. There is also a small pocket with Velcro inside on either side of the waist belt. I am pretty sure this is for the the optional 'levitators', which are carbon fiber springs that attach to each side of the hip belt and are supposed to help with large loads. The carbon fiber springs are enclosed in fabric and there is Velcro to mate with the pack and waist belt Velcro. The upper pocket on the hip belt is for the levitators, and the lower pocket is a gear loop attachment point. The last picture shows how the hip belt is tightened. Note the metal rectangular ring sewn near the end of the hip belt. The strap goes through that, which makes a pulley system to aid in tightening the hip belt. I believe Kelty calls this the "Scherer™ cinch". Though it does help to tighten the belt, I rarely have a problem tightening the belt. One feature, is if you have to loosen the belt because of bulky clothing, you can unthread the belt from the ring, making it longer.
Here is a side view of the pack. Note at the top and bottom of the pack the reinforcement areas where the gear loops can be attached. The mounting points are quite robust. There is nothing in the lid, so it looks a bit odd here.
You can attach gear loops to a variety of places on the pack as well as the hip belt. This pack doesn't have any 'gear loops', which are made out of folded webbing with a clear plastic tube around the webbing. As the plastic ages, it becomes less clear and less flexible. They are often used for holding rock climbing gear, though it seems odd to do technical climbing while wearing the pack.

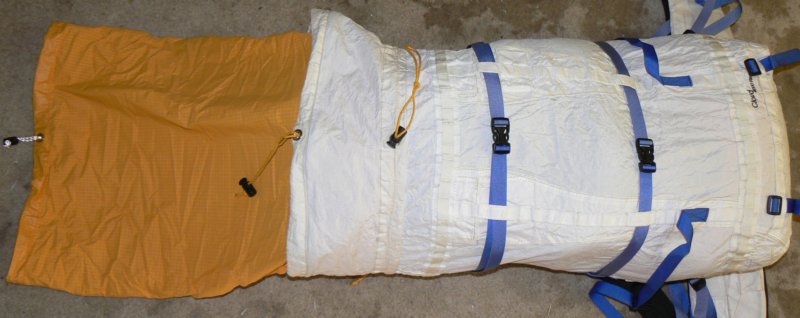

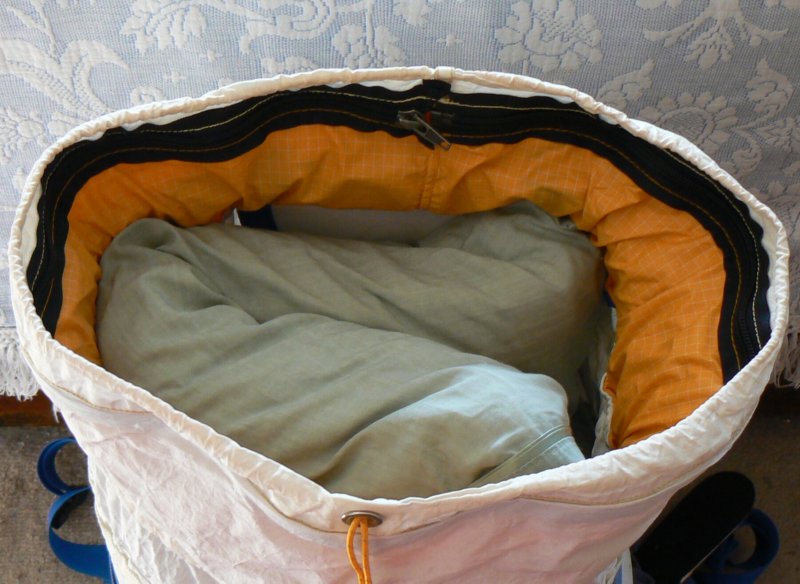

In addition to a spectra skirt extension of about 6 inches, this pack features a very long yellow skirt extension. The first picture shows the top of the pack. Sewn around the perimeter of the top is a zipper which holds the long skirt extension. No other Kelty spectra pack I am familiar with has this feature.

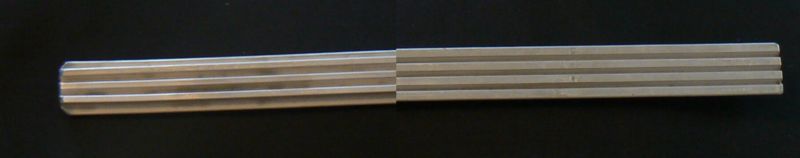

The frame is a critical part of the pack. It transfers the weight from the shoulders to the waist area. It is the backbone of the pack. The Kelty frame is made mostly of aluminum. The aluminum isn't flat stock, but rather it is corrugated to be lighter than flat stock of similar outline, and stiffer than flat stock of the same weight. Kelty calls the aluminum LightBeam, which is an appropriate name. The above picture shows both sides of a piece of Kelty LightBeam.

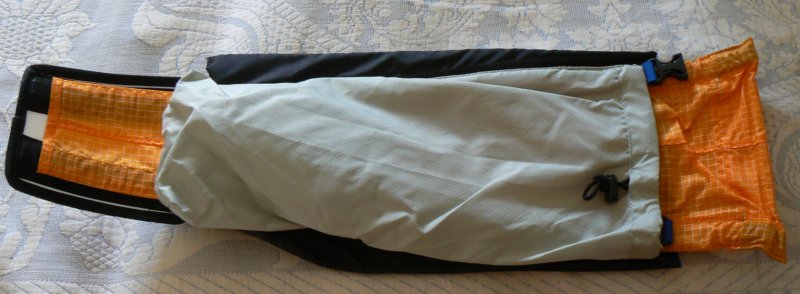

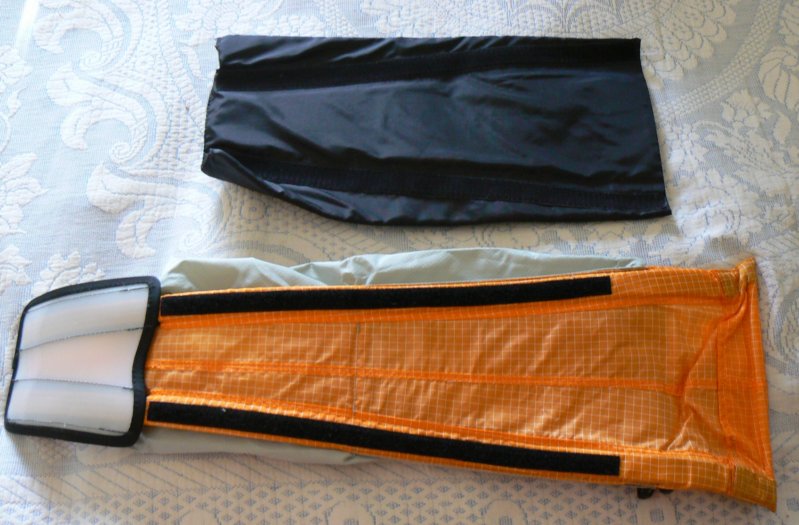

The frame consists of two stays of stays of aluminum, and a HDPE plastic sheet which holds them in place. The first picture shows the entire frame. On the left, is the part which mates with a pocket at the inside bottom of the pack, on the other side of the waist belt. The frame rails are partially visible inside the orange nylon frame sub-assembly. On the bottom is black nylon fabric surrounding some padding. At the far right of the frame is a cross bar which is sewn into the orange nylon frame sub-assembly. I suspect it is aluminum. Visible is a gray nylon sack which is used to hold a hydration bladder.
This is the other side of the frame. I have removed the black nylon padded part.

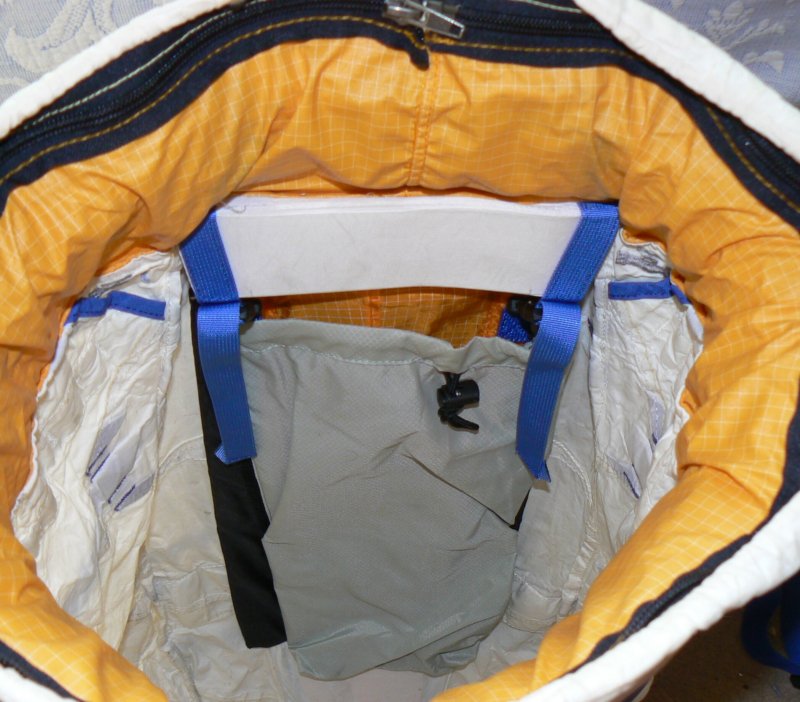

Here is a picture of the LightBeam rails attached to the bottom of the frame. The next picture is of the interior of the pack. Note the zipper that goes around the top of the pack, which holds the very long nylon skirt extension. Also note this pack includes a hydration bladder (gray) which is long and thin. The frame has been inserted into the pack, and secured with two straps. Visible on the sides, are hydration tube exits to the outside of the pack. This is not present on any of my 6500 packs. I think this is a pretty secure and robust internal frame. It isn't as heavy as the McHale, nor as strong, but I suspect it is strong enough for almost all uses.
