This chapter introduces two independent ways to enhance the efficiency
	  of parsing.  The first, which introduces the notion of ~deterministic
	  rules, makes little change in our parser, except to introduce another
	  GIVE procedure called D_GIVE.  Deterministic rules serve to ~save
	  ~memory, which can be important for very long input strings.  (However,
	  it is unclear how important deterministic rules are.  For all inputs
	  ever given to ICL, none caused a memory overflow even
	  in the absence of deterministic rules).

	  The second way to enhance efficiency relieves CPU consumption.	It
	  incurs more extensive modifications to the parser.	The increased
	  speed is most significant for large grammars, grammars having many


	  We consider here a way to reduce the memory consumption from parsing
	  very long strings.

	  Program specification usually consists of a set of function
	  declarations, and declarations for new global variables and new
	  types.  The bulk of the specification declares functions, like:

		    DEFINE	Function1 ...

		    DEFINE	Function2 ...

	  The function definitions may together form a long specification, but
	  individual function definitions may be of small or moderate size.

	  We notice that our syntax for function definition:


	  has keywords (DEFINE and ENDDEFN) that clearly deliniate the start
	  and finish of the function definition.	We may feel that when this
	  rule applies, we are certain that its application was meant to be.
	  That is, we don't expect the text under this want-phrase to be part
	of any other construction.

	We can assert the strength of this rule by making it ~deterministic.
	When the rule applies, we'll have it actually erase its want-phrase,
	  and all the phrases over which it spans.  We don't have the rule
	propose its give-phrase as an alternative, instead we have it be the
	~only alternative.  This saves memory.

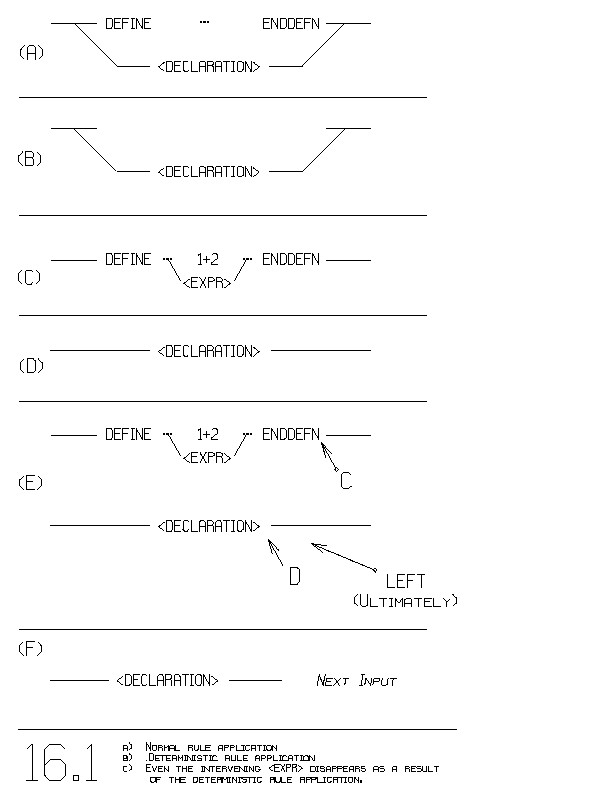

	Figure 16.1(a) shows this rule applying naturally, where the
	<DECLARATION> is an alternative.  As a deterministic rule, it would
	leave things as shown in figure 16.1(b).  It would also transform
	figure 16.1(c) into (d).

	It may be alarming to see us throw away all the parsing activity
	between the DEFINE and ENDDEFN.  Don't worry.  The ~meaning associated
	  with the resulting <DECLARATION> still is intact.

	  Some of the semantics associated with all the phrases we let go may
	  still be referenced within the semantics of the remaining
	  <DECLARATION>.	All that erased parsing thus continues to benefit us,
	  via the semantics that it built up.

	  Deterministic rules save memory and possibly execution time.  A
	  deterministic rule releases all the memory used for sub-phrases.
	  Imagine how much less memory is consumed in figure 16.1(d) relative
	  to (c).  (A periodic process called garbage collection will actually
	  recycle the released memory for other uses (Part 8)).

	  ICL has this function definition rule be deterministic.  It reduces
	  the memory consumption when parsing an input consisting
	  of many function definitions.  As each one is seen, it collapses to
	  a single occurence of <DECLARATION>.  Thus, only one function, inside
	  of which we stand, is consuming significant memory at all.


	  Consider the following program specification.	 It uses a variable
	  named ENDDEFN:

			 I:= I+1;
			 ENDDEFN:= I;

	  You may notice what looks like a complete function definition within
	  this text (formatted now slightly differently):

			 I:= I+1;

		    := I;

	  If the function declaration rule is deterministic, then it will see
	  this inner function definition first and will leave our ambiguous
	  phrase as:

		    := I;

	  This phrase will never be part of a complete program specification.

	  The deterministic rule has thus misled us.  If the rule were not
	  deterministic, it would still apply upon this inner function
	  definition, but it would leave intact all other interpretations.
	  Still available would be the whole function definition interpretation:

			 I:= I+1;
			 ENDDEFN:= I;

	  The final ENDDEFN would participate in a second application of this
	  function definition rule.  Both applications would be available,
	  and only the second (whole) one would become part of an overall

	  These pitfalls are minor, and rare, and can be removed easily by
	  choosing a different variable name, or by enclosing in parentheses
	  the ENDDEFN variable.	 (The parentheses would block the inner
	  application of the function definition rule).	 Some programming
	  languages solve this problem by forbidding the use of such "reserved

		    BOX:	When might you render a rule deterministic?
		    BOX:	What can go wrong?


	  We implement deterministic rules by introducing a variation of GIVE,
	  called D_GIVE, short for ~deterministic ~GIVE:


			 C:= D;
			 D:= C;


	  D_GIVE is to be called instead of GIVE, inside deterministic rules.

	  We've introduced a global variable named D, beyond the global variable
	C.  D, like C, is a CHOICE_OF_PHRASES.  D_GIVE ignores entirely the
	value in C.  It uses the value in D instead.

	Think of D and C as queues.  D is the high priority queue and C
	is the low priority queue.  Deterministic rules introduce their
	phrases on the high-priority queue D instead of the low-priority
	queue C, where all other rules introduce their phrases.

	To make D have priority over C, we should impose the following:

		If you read C, then read D instead, if D is non-empty.

	D dominates C.

	We read C inside general rewrite rules and while taking user input,

		LEFT:= C;

	We need to change that assignment to be:


	This means that we see as our left neighbor D if D is defined at all
	(non-empty).  Otherwise we do like before, taking as our left neighbor

	We need another change.  We must set D to NIL whenever we set C
	to NIL.  That is, our old act of:

		LEFT:= C;

		C:= NIL;
		GIVE(  [LEFT:LEFT  POS:<pos>]  );

	is now updated to be:


		C:= NIL;
		D:= NIL;
		GIVE(  [LEFT:LEFT  POS:<pos>]  );

	Figure 16.1(e) shows the values in C and D after GIVing the ENDDEFN.
	Since our function definition rule is deterministic, it puts its
	give-phrase onto D instead of C.

	The value in D will be taken when we step rightward, when we execute:


	Since D is non-empty, LEFT now points to what D pointed to.  Only the
	<DECLARATION> is in D.  Everything that was in C is lost.  Notice that
	after stepping right once, we find only the <DECLARATION> to our left,
	as shown in figure 16.1(f).

		BOX:	Which is the high-priority queue, C or D?
		BOX:	What do we do with C if D is non-empty?
Do Deterministic Rules Preserve "Fully Ambiguated"?

	We might argue that D is always fully ambiguated, like C was, before
	introducing deterministic rules.  If only ~one deterministic rule
	applies, then D will be fully ambiguated:

		D is initially NIL, which means it's initially fully
		    ambiguated.  D_GIVE calls GIVE, first putting into C the
		    contents of D, which are fully ambiguated.	The call to GIVE
		    leaves C still fully ambiguated, and that value is put back
		    into D.

	  D is fully ambiguated.  However, C is no longer fully ambiguated,
	  because we haven't put ~everything onto C.  Things in D are not in C.

	However, when we perform:


	LEFT will always be fully ambiguated.  If LEFT takes on D, then we
	already know that D is fully ambiguated.  However, if D is empty,
	D_GIVE was never called, and hence C got everything as before,
	via all non-deterministic rules.  Thus, C, and hence LEFT, is fully
	ambiguated even if LEFT takes on C's value.

	  What happens if more than one deterministic rule applies?	 That is,
	  what if D_GIVE calls GIVE, and within that GIVE, D_GIVE gets called
	  again?  This happens if the results of one deterministic rule
	  application participate in another deterministic rule application.

	  The second (nested) call to D_GIVE naturally ignores what's on C,
	because it performs first:

		C:= D;

	However, what was on C at this moment?  The outer (original) call to
	D_GIVE was executing:

		C:= D;
		GIVE( P );	"we are waiting here now"
		D:= C;

	It was still at the GIVE, waiting for its completion.  At that time,
	the first deterministic rule's give-phrase was on C, as we still
	  hadn't yet moved that result into D (the last assignment).

	Thus, among the losses in C is the give-phrase given by the first
	deterministic rule!  The first deterministic rule thus fails to be

	Our argument that D is always fully ambiguated falls apart.  We had
	assumed that D_GIVE's call to GIVE meant a call to the old GIVE,
	  without the possiblity of further deterministic rule applications.
	  We therefore conclude that D_GIVE as is doesn't preserve the "fully
	ambiguated" property.
An Updated D_GIVE Function

	We recover the "fully ambiguated" property for D_GIVE, by making D_GIVE
	behave exactly like GIVE when inside an (outer) call to D_GIVE.

	We introduce a global variable named WORKING_ON_D:



	D_GIVE will set this variable to TRUE.  D_GIVE is after all
	concentrating on D now.

	If we enter D_GIVE while WORKING_ON_D is true,
	we know that our call to D_GIVE is called indirectly within an outer
	call to D_GIVE.  In this case, we act exactly like GIVE (in the THEN-


			IF  WORKING_ON_D  THEN  GIVE(P);  "(D_GIVE acts exactly
							    like the old GIVE)"
			ELSE	C:= D;


				D:= C;

	This new definition assures that within D_GIVE, further calls to
	D_GIVE behave exactly like GIVE.

	Now we know that the call to GIVE within the ELSE-clause behaves
	exactly like GIVE in the absence of deterministic rules.  This assures
	that D, which is set to the result of GIVE, is fully ambiguated.

		BOX:	If a deterministic rule applies and this causes another
		BOX:	deterministic rule to apply, what does D_GIVE perform
		BOX:	like for the second rule application?


	Deterministic rules are helpful with very long inputs.  They
	correspond to the language designer's feelings that those
	  deterministic rule applications are certain events.

	  The only restrictions that arise concern avoiding use of a name like
	  ENDDEFN, which is a mild enough restriction.	Even if the user uses
	  the name ENDDEFN, any very rare errors caused by the deterministic
	  rule will show up clearly in the syntax error message.

	  Deterministic rules make it impossible to prove the parser's
	completeness, as it should be, because deterministic rules do remove
	some options.  Even portions of the given input string are removed
	by deterministic rules.

	With heavy use of ICL since 1977, we have never encountered a file of
	ICL text that was big enough to make significant the savings provided
	by deterministic rules.  However, we keep the deterministic rule for
	robustness, for as yet unseen large files.


	We now embark on some refinements of the parser.  They don't reduce
	  the theoretical polynomial upper bound, but they do reduce the
	  coefficients, particularly when given large grammars.  The following
	  are independent optimizations.



	  Consider the type CHOICE_OF_PHRASES.  Our figures have represented
	  that type as an array, like in figure 16.2(a).  Part (b) shows how ICL
	  actually represents the type CHOICE_OF_PHRASES.  Instead of a single
	  block, ICL maintains a list, shown vertically in the figure.  That is,
	  the type declaration:


	  makes CHOICE_OF_PHRASES be a linked list, and not an array.
	  This choice is appropriate for two reasons.  First, we access a
	  CHOICE_OF_PHRASES only sequentially, via the FOR-quantifier.  Arrays
	  are truly needed only if random access is important, which it isn't
	here.  Secondly, the right-append operator "$>", which appears in
	GIVE's assignment:

		    C := C $> P ;

	  is defined only for lists, and not for arrays.  The ~number of
	  elements in C increases.

	  If we replace this assignment by:

		    C :=  P <$ C ;

	  the new PHRASE block P will be inserted at the front of the list, as
	  shown in figure 16.2(c).  This is a very inexpensive operation.
	  Although ICL implements both of these assignments equally quickly, it
	  is easier to understand things if we use this latest left-append "<$"
	  instead of the former right-append "$>".

	  Now that the actual representation of CHOICE_OF_PHRASES is shown, we
	  go one step further.	We introduce a new field into the type PHRASE,
	  called the ALTernate:

						ALT:	PHRASE	  ] ;

	  We now make CHOICE_OF_PHRASES be simply a PHRASE:


	  Figure 16.2(d) shows our old CHOICE_OF_PHRASES rendered this new way.

	  That list of PHRASE blocks, linked together via the ALT field, is
	  called a ~column, and it plays exactly the same role that
	  CHOICE_OF_PHRASES has played up to now.	 The introduction of a new
	  element onto such a column is easy like in figure 16.2(c), and is shown
	  in figure 16.2(e).

	  This slight modification to our datatypes speeds things up a little.
	  We will extend this modification shortly.

		    BOX:	Why is it quicker to introduce a new element onto a
		    BOX:	list than onto an array?


	  Consider the two rules:

		    <FORM>	::=  <FORM> + <TERM>
		    <FORM>	::=		  <TERM>

	  (We are using the "::=" notation, which was introduced at the
	  beginning of Chapter 1).

	  These rules' want-phrases (the righthand sides) end in
	the same thing, <TERM>.  Written separately, these rules appear as:

		P1:= P;

			FOR P2 $E P1.LEFT;  WITH  P2.POS = '+' ;
			FOR P3 $E P2.LEFT;  WITH  P3.POS = <FORM> ;
				give a <FORM>

		P1:= P;

			give a <FORM>

	The IF statements, which match the want-phrases' rightmost elements,
	  the <TERM>s, appears twice.	 It will be executed twice.  We optimize
	  by combining those two rules so as to share one occurence of the IF

		    P1:= P;
		    IF  P1.POS = <TERM>	 THEN

				" First rule... "

				FOR P2 $E P1.LEFT;  WITH  P2.POS = '+' ;
				FOR P3 $E P2.LEFT;  WITH  P3.POS = <FORM> ;
					  give a <FORM>

				" Second rule... "

				give a <FORM>

	  The one IF statement serves both rules.	 The actions of the two rules
	  remain unchanged.

	  We write this factoring symbolically for the two rules as:

		    "give a <FORM>"	<--	<FORM>   <---  +	<---	<TERM>
						    "give a <FORM>"  <---/

	  The rightmost <TERM> is shared in common.  We call such a combined
	  representation of want-phrases as a ~want-tree.  The root of the tree
	  appears at the far right.

	  Consider the following two rules:

		    ?1   ::=   <FORM> + <TERM>
		    ?2   ::=   <FUM>  + <TERM>

	  (We've made up the part-of-speech <FUM> for this example).  The two
	rules share more in common than did our previous example.  Looking at
	the want-phrases from right-to-left, both the <TERM> and the "+" are
	shared in common.  We represent the sharing by writing the want-phrases

		do ?1	<---   <FORM>   <---   +   <---   <TERM>
		do ?2	<---   <FUM>   <-/

	This sharing can appear in the program for the two rules:

		P1:= P;
		IF  P1.PO2 = <TERM>  THEN

			FOR P2 $E P1.LEFT;  WITH  P2.POS = '+' ;
				" First rule... "

				FOR P3 $E P2.LEFT;  WITH  P3.POS = <FORM> ;

				" Second rule... "

				FOR P3 $E P2.LEFT;  WITH  P3.POS = <FUM> ;

	Each setting of the variables P1 and P2 applies to both rules.  Only
	the variable P3 is treated differently by the two rules.

	If we put all three rules together:

		?1   ::=   <FORM>  +  <TERM>
		?2   ::=   <FUM>   +  <TERM>
		?3   ::=	      <TERM>

	we can share portions of their want-phrases as follows:

		do ?1	<---   <FORM>   <---   +   <---   <TERM>
					  /	     /
		do ?2	<---   <FUM>   <-/	    /
				      do ?3   <---/

	Efficiency is gained as rules' want-phrases can be shared.

	  In fact, ~two occurences of the ~same rule would wind up costing
	  only as much as one occurence, as far as phrase matching is concerned.
	  That is, the two rules:

		    ?1   ::=   <FORM> + <TERM>
		    ?2   ::=   <FORM> + <TERM>

	  will look like:

		    do ?1	<---	 <FORM>   <---   +   <---   <TERM>
		    do ?2  <-/

	  These two rules will behave like one except that two give-
	  phrases (?1 and ?2) will be generated.

	  If the (context-free) give-phrases are identical, then the second of
	  the two calls to GIVE will find a duplicate.	Hence, only one of the
	  applications of these two identical rules will cause the grammar to be
	  called.  Two identical rules therefore cost only the price of one,
	  except for the tiny cost within GIVE, as it finds the duplicate.

		    BOX:	What savings are afforded by want-trees?
		    BOX:	With our optimizations, what is the difference in cost
		    BOX:	between one rule vs. two identical occurences of that
		    BOX:	rule?

Scanning A Column Only Once For Several Rules

	  Consider the want-tree:

		    do ?1	<---	 <FORM>   <---   +   <---   <TERM>
		    do ?2	<---	 <FUM>  <--/

	  To the left of the "+", a <FORM> and a <FUM> are desired.	 As just
	  shown, after the right-to-left matching of the <TERM> and the "+",
	  the two rules separate.  Each sets the variable P3 independently:

		    " First rule... "

		    FOR P3 $E P2.LEFT;	WITH	P3.POS = <FORM> ;

		    " Second rule... "

		    FOR P3 $E P2.LEFT;	WITH	P3.POS = <FUM> ;

	  Here we go thru two scans of P2.LEFT, examining the same column
	  (CHOICE_OF_PHRASES) once for each rule.

	  It is more efficient to scan that column only once.	 We scan P2.LEFT
	  only once in the following equivalent rendition:

		    FOR P3 $E P2.LEFT;
				" First rule... "

				IF  P3.POS = <FORM>  THEN   ?1   FI

				" Second rule... "

				IF  P3.POS = <FUM>   THEN   ?2   FI

	  In general, a point in a want-tree may have more than two alternatives.
	  There may be K, as in:

		    ?1   <---   <POS(1)>   <----------
		    ?2   <---   <POS(2)>   <-------/
		    ...				 ...
		    ?K   <---   <POS(K)>   <---/

	  This is programmed efficiently by:

		    FOR P3 $E P2.LEFT;
				IF  P3.POS = <POS(1)>  THEN  ?1  FI
				IF  P3.POS = <POS(2)>  THEN  ?2  FI
				IF  P3.POS = <POS(K)>  THEN  ?K  FI

	---------------- Parentheses in previous paragraph mean subscripting! ---

	  Each of the ?1, ?2, ... ?K may be give actions, or further want-trees
	  to the left.  For example, our ?K might itself be a want-tree, as
	  shown in:

					  ?1	    <---	<POS(1)>   <---------
					  ?2	    <---	<POS(2)>   <------/
					  ...					   ...
		    ?K1   <---   <POS(K1)>  <---	<POS(K)>   <---/
		    ?K2   <---   <POS(K2)>  <-/
		    ...			   ...
		    ?KJ   <---   <POS(KJ)> </

	  The ?K (that which is to the left of <POS(K)>) is another want-tree.
	  Naturally, this is programmed as before via:

		    FOR P3 $E P2.LEFT;
				IF  P3.POS = <POS(1)>  THEN  ?1  FI
				IF  P3.POS = <POS(2)>  THEN  ?2  FI
				IF  P3.POS = <POS(K)>  THEN

					  " ?K ... "

					  FOR P4 $E P3.LEFT;
						    IF  P4.POS = <POS(K1)>  THEN  ?K1  FI
						    IF  P4.POS = <POS(KJ)>  THEN  ?KJ  FI
	---------------- Parentheses in previous paragraph mean subscripting! ---

Ordering In Columns And Want-Trees

	  Let's concentrate on one level in the want-tree:

		FOR P3 $E P2.LEFT;
			IF  P3.POS = <POS(1)>  THEN  ?1  FI
			IF  P3.POS = <POS(2)>  THEN  ?2  FI
			IF  P3.POS = <POS(K)>  THEN  ?K  FI

	If the FOR-quantifier generates N iterations, then in total, we perform
	N*K comparisons.  We can reduce this multiplication down to an addition
	so as to arrive at only N+K comparisons.
      ---------------- Parentheses in previous paragraph mean subscripting! ---

	Let's rephrase this program fragement as:

		    FOR  P3	 taking on elements in	P2.LEFT
				IF  P3.POS = <POS(1)>  THEN  ?1  FI
				IF  P3.POS = <POS(2)>  THEN  ?2  FI
				IF  P3.POS = <POS(K)>  THEN  ?K  FI

	  Each part-of-speech is an integer.  Let's put the IF-statements in
	order, so that <POS(1)> is the smallest of the parts-of-speech, and
	<POS(K)> is the largest.
      ---------------- Parentheses in previous paragraph mean subscripting! ---

	Suppose also that the column (CHOICE_OF_PHRASES) P2.LEFT also has
	elements appearing in order from the smallest to the largest part-of-

	We achieve the same behavior more efficiently by writing the program

		FOR  P3  taking on elements in P2.LEFT
						~while  P3.POS =< <POS(1)>
			IF  P3.POS = <POS(1)>  THEN  ?1  FI

		FOR  P3  taking on ~subsequent elements in P2.LEFT
						~while  P3.POS =< <POS(2)>
			IF  P3.POS = <POS(2)>  THEN  ?2  FI

		FOR  P3  taking on ~subsequent elements in P2.LEFT
						~while  P3.POS =< <POS(K)>
			IF  P3.POS = <POS(K)>  THEN  ?K  FI

	Here, we scan the column P2.LEFT only far enough to see <POS(1)>.
	For each of those iterations, we perform the IF-statement for <POS(1)>.
	If <POS(1)> exists at all in P2.LEFT, then we will see it in at least
	one of these iterations.
      ---------------- Parentheses in previous paragraph mean subscripting! ---

	Having considered <POS(1)>, we continue scanning ~where ~we ~just
	~left ~off.  That is, since <POS(2)> is greater than <POS(1)>, and
	because the column P2.LEFT is ordered increasingly, any occurence of
	<POS(2)> in the column appears ~after all occurences of <POS(1)>.
	Therefore, we don't have to restart scanning at the beginning of
	  P2.LEFT in our effort to find <POS(2)>.
	---------------- Parentheses in previous paragraph mean subscripting! ---

	  Since we always continue scanning from where we had left off,  we
	  make a total of one complete scan thru the column.	On each of those
	  N iterations, we execute only one IF-statement.

	  This overall program has length K.  Therefore, one scan thru the
	  column of length N along with the execution of this program of length
	  K costs only N+K time.  Depending on how the comparisons are
	  implemented, we will perform a total of N+K comparisons, or twice that
	  at most.	This is better than N*K, particularly for large grammars,
	  where K may be large.


	  This behavior is like that of a zipper. One side of the zipper is the
	  column, and the other is the program.  We travel only forward in both.

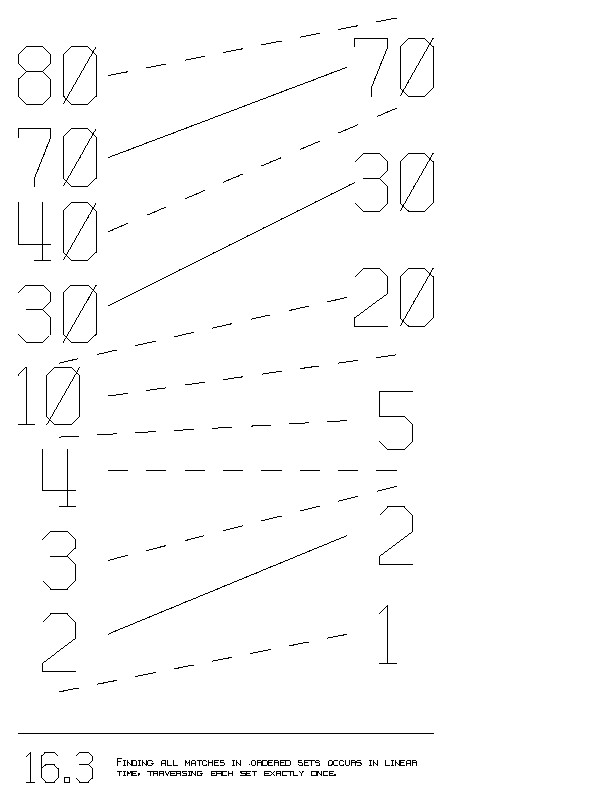

	  Figure 16.3 illustates this, showing each comparison by a line
	  connecting the two columns together.  Only at the values 2 and 70 is
	  a match found.	However, we've scanned each column only once in total.

	Since a cost of N+K is less than that of N*K, let's in fact always
	  compile grammars as just shown, and let's also insist that any column
	(CHOICE_OF_PHRASES) be ordered increasingly.  Of course, GIVE must be
	changed so as not to always append its new element at the front.
	GIVE must search the column, like it is doing anyway in its effort to
	supress duplicate phrases.  GIVE should insert the new element
	somewhere in the column so as to preserve the new ordering requirement.

		BOX:	What savings are offered by ordering both columns and
		BOX:	want-trees?

More Factoring


	Another optimization involves collecting together all PHRASE blocks

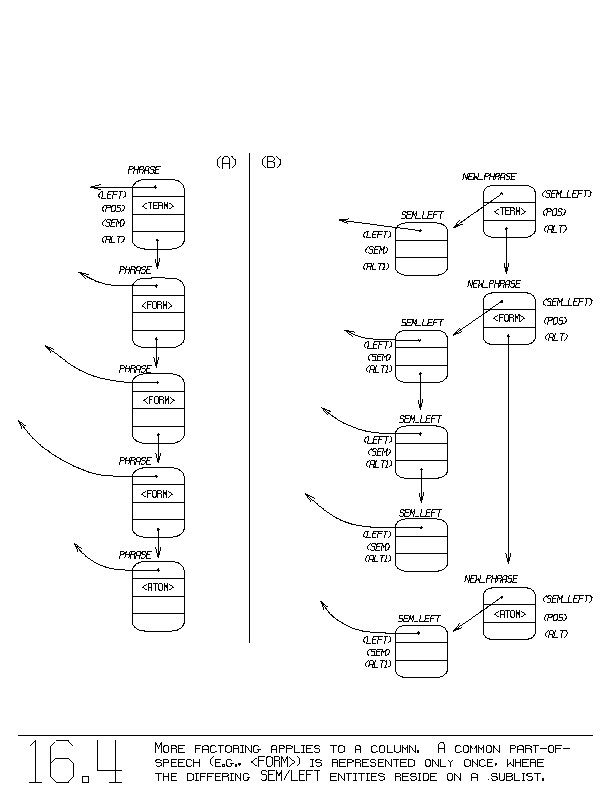

	having the same part-of-speech.  Figure 16.4(a) shows a column having
	three <FORM> PHRASE blocks.  The parts-of-speech are the same, but
	the LEFT fields differ.  The number of different LEFT fields can be
	large, possibly as large as the number of characters in the input
	string (worst case).  If a rule's want-phrase is looking for an <ATOM>,
	  it will still have to see three <FORM>s before arriving at the <ATOM>.

	  Figure 16.4(b) shows an equivalent representation.	Each part-of-speech
	  is represented only once, and each has a sub-list containing all the
	  different LEFT values for that part-of-speech.  In each PHRASE block,
	  we have replaced the two fields SEM and LEFT with a single field
	  SEM_AND_LEFT which references a list of SEM/LEFT pairs.

	  The part-of-speech (POS) is now represented separately from the
	  possible SEM/LEFT pairs.  This figure is built in terms of the new

						    ALT: NEW_PHRASE			] ;

						  ALT1: SEM_LEFT		    ] ;

	  The part-of-speech need be compared only once, and all of its SEM/LEFT
	  pairs can be accessed with no further compares.

	  This arrangement also speeds up GIVE's search for duplicate phrases.
	Given the new part-of-speech, GIVE merely searches a list of length
	P (the number of possible parts-of-speech) to find a matching part-of-
	speech, and then searches a list of length N (the number of input
	characters) in order to find a LEFT field that matches the given LEFT
	field.  This cost is N+P, as opposed to our old cost of N*P (the total
	length of the list in figure 16.4(a)).

	Also, if someone wants to determine whether a given part-of-speech
	exists in a column, such a determination costs only a search thru
	a list of length P, which is independent of N.

		BOX:	What advantages are provided by factoring out the
		BOX:	part-of-speech from the SEM and LEFT fields?
